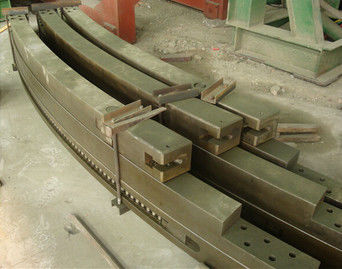

Continuous Casting Machine Rigid Dummy Bar

Hình ảnh lớn : Continuous Casting Machine Rigid Dummy Bar

Thông tin chi tiết sản phẩm:

Nguồn gốc:	China
Hàng hiệu:	Atwill
Chứng nhận:	ISO

Thanh toán:

Số lượng đặt hàng tối thiểu:	1 pc
chi tiết đóng gói:	Seaworth packing
Thời gian giao hàng:	30 days
Điều khoản thanh toán:	TT or L/C
Khả năng cung cấp:	5000 Ton/month

Tiếp xúc

Chi tiết sản phẩm

Continuous Casting Machine Rigid Dummy Bar

CCM machine parts

Best cervie and competitive price

Specification

Rigid Dummy Bar

1. Application

The dummy bar is used to tract and lead the cooled and solidified strand and pull it out by the withdrawal and straghtening machine.

2. Features

In order to avoid the deformation of dummy bar body due to the heating, the dummy bar is equipped with a cooling water pipe inside the bar body. It has the features of smaller deformation, long service, simple structure and installation, easy operation and maintenance.

3. Main technical parameter

Outer bow radius for bar body:

R4000mm, R5250mm, R6000mm, R7000mm, R8000mm, R9000mm

Section dimension of bar body:

90x90mm, 100x100mm, 120x120mm, 150x150mm, 160x160mm, 170x170mm, 180x180mm, 80x240mm, 160x400mm
